How to Improve the CM3500?
- More Capacity
- More Blower Options
- More Cool!

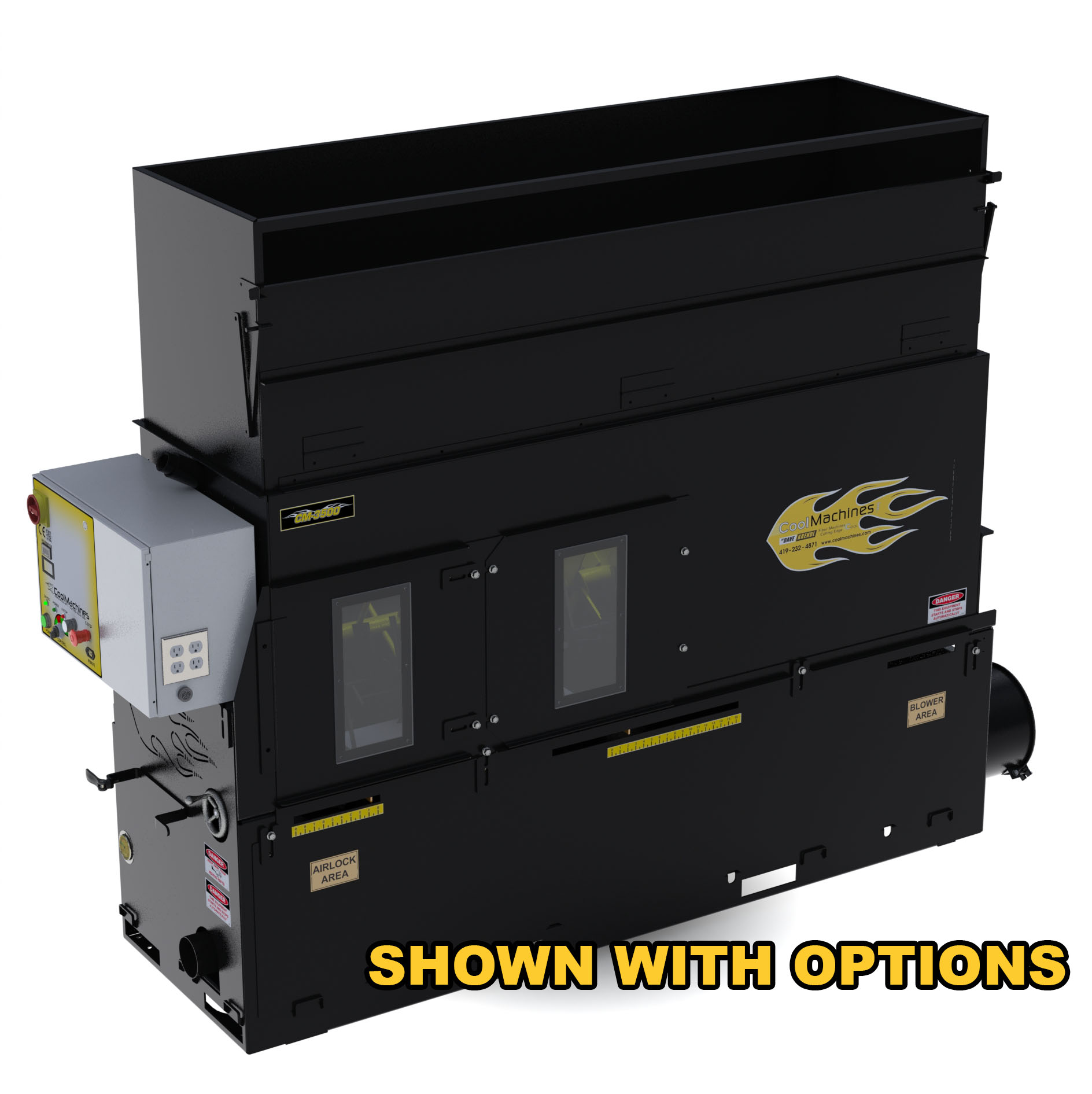

Our CM-3500XL System with dual metering hoppers, offers streamlined efficiency, application versatility, and components that are both simple to use and easy to repair. This machine provides both the start-up contractor and the high production installers a solution that makes sense.
The complete system design with modest power requirements, offers you a CM-3500XL that can be transported in a truck or trailer to the job-site, and set-up to spray or blow in minutes.
This ingenuously designed truck system with self contained hose reels, heated water tanks, and generator, provide all the necessities for a portable, self-sustaining spray system. The reduced power requirements for this system allow you to use 240 volt, 50 amps job-site power from the grid to conserve generator costs.
Specifications of Standard CM3500XLS
- Weights: 1,776 lbs. (4-Blower Box), 1,806 lbs. (5HP PD Blower)
- Dimensions:
- Side of Truck/Trailer 107\” x 29\” x 56 1/2\”
- Front of Truck/Trailer 92\” x 29\” x 56 1/2\”
- With Hopper Extension, 77 1/2\” to 85\” tall
- Hopper Capacity:
- Dry: 40 ft.3 (71 ft3 w/Hopper Extension)
- Airlock Options:
- 12” dia. x 20” long, w/ 4” output tube.
- 12” dia. x 24” long, w/ 4” output tube.
- Drive Motor: 3 h.p.
- Blower Options:
- 4 – 13 amp. blowers /140 c.f.m. / 6PSI (4-Blower Box)
- 5 HP 180 c.f.m. / 6PSI (PD Blower)
- 7.5HP 205CFM / 8PSI (PD Blower)
- 10HP 250CFM / 6PSI (PD Blower)
- 15HP 590CFM / 5PSI (PD Blower)
- Power Requirements:
- 30-50 amp, 240 volt, single phase, single input (4-blower or 5HP PD Blower)
- 30 amp, 240/480 volt, 3 phase, single input (10HP blower or 5HP PD Blower)
Wall Spray Options
CM-3500VH \’Vacuum Hood\’
Specifications:
- Weight: 1450 lbs.
- Dimensions: 90\”l x 24\”w x 77\”h
- Hopper Capacity:
- Dry: 16.5 ft.3
- Recycle: 12 ft.3
- Total: 28.5 ft.3 (41 ft.3 w/ Hopper Extension)
- Airlock size:
- 12” dia. x 20” long, 4” output tube.
- 12” dia. x 24” long, 4” output tube.
- Drive motor: 2 h.p.
- Blower:
- 13 amp. /140 c.f.m. (Blower Box)
- 5 h.p. or 7.5 h.p. – P.D. Blower/ 250 c.f.m.
- •Power Requirements:
- •30 amp. single input (4 Blower or PD Blower)
CM3500 VP (Integrated Vac-Pack)
Specifications:
- Weight: 1450 lbs. (4-Blower) / 1750 lbs.(P.D. Blower)
- Dimensions: 122\”l x 24\”w x 85\”h
- Hopper Capacity:
- Dry: 16.5 ft.3
- Recycle: 8 ft.3
- Total: 24.5 ft.3 (38 ft.3 w/ Hopper Extension)
- Airlock size:
- 12” dia. x 20” long, 4” output tube.
- 12” dia. x 24” long, 4” output tube.
- Drive motor: 2 h.p.
- Blower:
- 13 amp. /140 c.f.m. (Blower Box)
- 5 h.p. or 7.5 h.p. – P.D. Blower/ 250 c.f.m.
- Power Requirements:
- 50 amp. 240 volt, single input
